PanelPro Jr. and PanelPro Jr. XL (Extra Long):
Perfect Test Panels from a Compact Panel Painting Machine
The PanelPRO Jr.
series of machines are designed for creating perfect test panels...every time.
Multiple path styles (horizontal square, vertical square and W pattern) can
reproduce nearly any type of painting motion including manual painting, robot
painting and reciprocator painting. The design makes panel painting easy,
safe and repeatable.
Features:
-

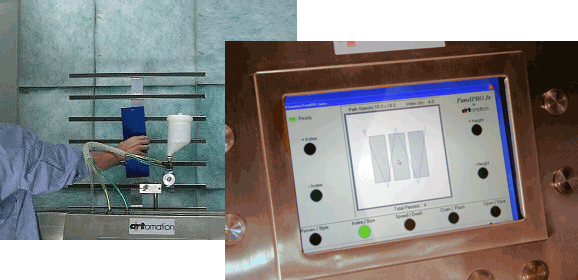

graphical path visualization makes
operation simple
-
the easy to use computer interface is specifically designed for panel
painting making it easy to learn and intuitive to use
-
adjustable parameters: Path Style, Speed, Stroke Length,
Number of Passes, Index between Passes, Number of Coats, Flash time between
Coats and Atomizer control Settings (Atomization, Pattern, Bell Speed, etc.)
-
stored recipes are quickly retrieved and executed (50
recipes standard)
-
usage data and statistics are stored on a removable drive
-
integrated gun trigger
-
built on a rugged steel frame wrapped in a robust stainless steel cabinet
-
rolls through a 36 inch door without disassembling the unit
-
the panel holder can be reached without bending over the
machine, reducing the risk of repetitive motion injury to the operator
-
precision servo motors reproduce speed and position with
extreme accuracy
-
servo motors do not use output fuses (unlike dc motor
machines) eliminating the risk of blowing a fuse when overspray builds on the
guide rails
-
designed with "off the self" components eliminating the
need to "board swap" significantly reducing maintenance costs
Available Models and Options:
The
PanelPro Jr. can be equipped with any non-electrostatic spray gun.
Quick color change capability and small sample size make it perfect for Color
Matching.
Specifications:
-
sized to fit
into a 4 foot spray booth (purged enclosure meets NFPA 496)
-
24" x 24" panel capable based on a flat, vertical fan
pattern
-
horizontal travel: 30", vertical travel: 26"
-
gun travel speed: 24 in/sec (600 mm/sec)
Options:
-
automatic air pressure control (transducer)
-
automatic fluid control (transducer)
-
additional spray gun control for base/base or base/clear
applications.
-
faster travel speeds
The PanelPro Jr. XL (Extra Long) is designed for
rotary atomizers and electrostatic atomizers. It's perfect for Product
Development and Color Matching.
Specifications:
-
sized to fit
into a 6 foot spray booth (purged enclosure meets NFPA 496)
-
24" x 24" panel capable based on a 12" bell pattern
-
horizontal travel: 52", vertical travel: 26"
-
gun travel speed: 42 in/sec (1000 mm/sec)
Options:
-
automatic air pressure control (transducer)
-
automatic fluid control (transducer)
-
additional spray gun or rotary atomizer control for bell/gun
or bell/bell applications.
-
integrated Bell Speed Control (includes bearing air and
trigger interlocks)
-
integrated Fluid Delivery (1 or 2 pumps)
-
integrated Electrostatic Control
-
quick Color Change
-
faster travel speeds
